Radium Engineering GM LS1, LS2, LS3, LS6, L76, L99 Fuel Rails
Couldn't load pickup availability
COMPATIBILITY
- GM LS1 Engine
- GM LS2 Engine
- GM LS3 Engine
- GM LS6 Engine
- GM L76 Engine
- GM L99 Engine
 |

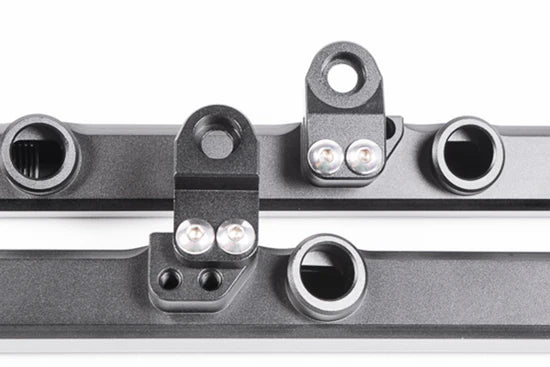

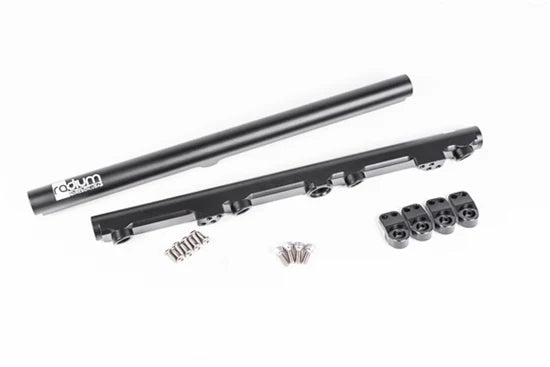

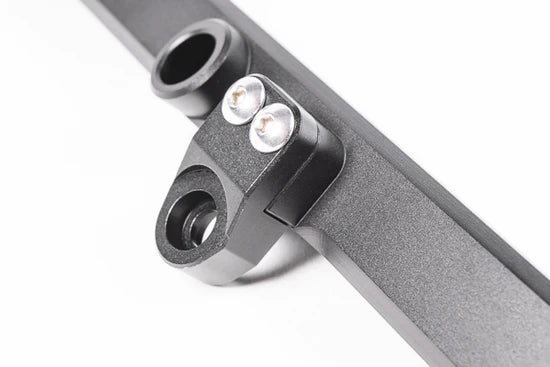

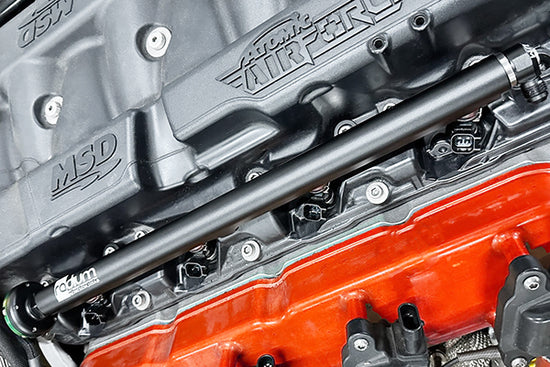

20-0232 Fuel Rails GM LS1,LS2,LS3,LS6,L76,L99Manufactured with a large 0.69" internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. All end ports are machined with 8AN ORB (3/4-16 female) threads. The lower center ports can be used for optional adapters and are also tapped with 8AN ORB (3/4-16 female) threads. FUEL INJECTOR COMPATIBILITY This fuel rail is compatible with factory or OEM equivalent fuel injectors. This means that the injectors being installed must match the OEM height and o-ring dimensions. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating "OEM equivalent". PORTS AND FITTINGS The fuel rail ports are tapped for 8AN ORB fittings. Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide. INCLUDES
|
 |

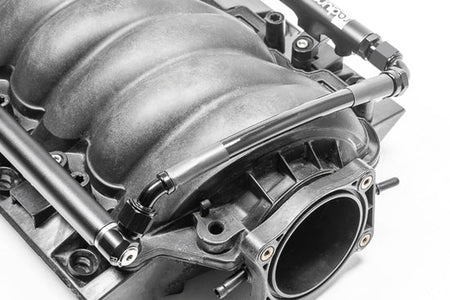

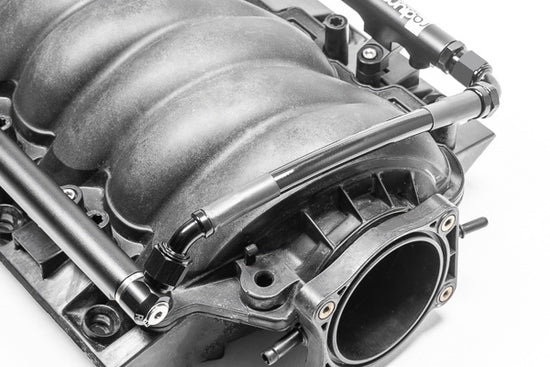

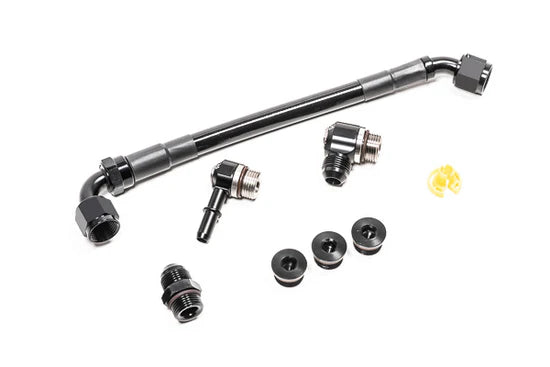

20-0232-PK Fuel Rail Plumbing Kit LS1,LS2,LS3,LS6,L76,L99The Fuel Rail Plumbing Kit reuses the OEM fuel feed hose. It is a direct bolt-on for LS1, LS2, LS3, LS6, L76, and L99 engines. INCLUDES
|
